Automatic Tape Sealing Machine for Efficient Box Sealing in ODU and IDU Lines

Manually fold the lid of the box, and then the machine automatically seals the top and bottom sides of the box.

1 for ODU line, 1 for IDU line.

Product Detail

Parameter

	Parameter (1500pcs/8h)
Item	Specification	Unit	QTY
Width range of tape	48mm-72mm	set	2
Sealing specifications	L：(150-+∞) mm；W：(120-480) mm；H：(120-480) mm
Model	MH-FJ-1A
Power Supply Voltage	1P, AC220V, 50Hz, 600W
Carton Sealing Speed	19 meters/minute

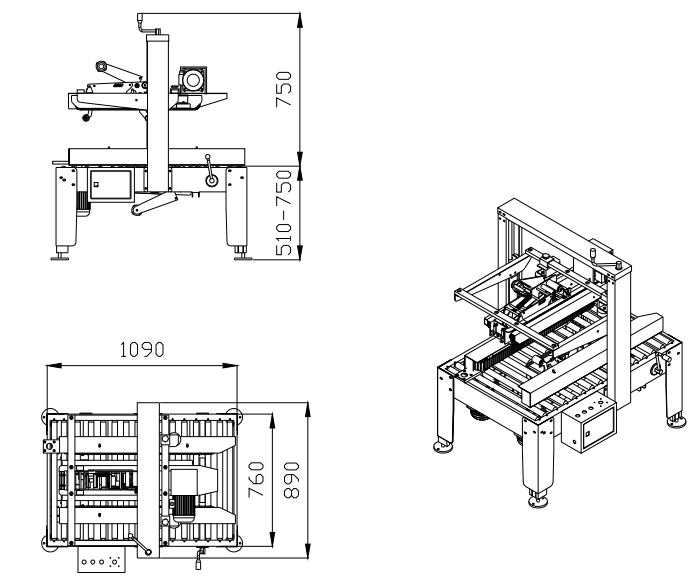

Machine Dimension	L1090mm×W890mm×H (tabletop plus 750) mm
Packing Dimension	L1350×W1150×H (tabletop height + 850) mm (2.63m³)
Working Table Height	510mm - 750mm (adjustable)
Carton Sealing Tape	Kraft paper tape, BOPP tape
Tape Dimension	48mm - 72mm
Carton Sealing Specification	L (150 - +∞) mm; W (120 - 480) mm; H (120 - 480) mm
Machine Weight	100kg
Working Noise	≤75dB(A)
Environmental Conditions	Relative humidity ≤90%, temperature 0℃ - 40℃
Lubricating Material	General - purpose grease
Machine Performance	When changing the carton specification, manual positioning adjustment is required for left/right and up/down. It can convey automatically and timely, seal the top and bottom simultaneously, and is driven by the side.
