High Precision Metal Stamping Press Power Press
With high rigidity design in machine frame,the
machine body is welded of quality steel sheet and
treated by tension elimination,improve stability and
reliability of precision of the machine.
Keep the transmission center and machine center in uniformity,guarantee the precision of pressing.
In order to guarantee the machine running in stable and smooth,adopts the design of symmetrical boards with balancer.
The precision of mold adjusting up to 0.1mm,safety,reliable and convenient.
Crank,gear.connect bar are oxidized hardening and
milled,having super comprehensive mechanical
performance and durable function.
Used reliable high sensitive clutch/brake and
international up-to-date twin electromagnetic valve,
overloading protector can guarantee the precision
of slider running and stop and safe production of the machine.
Reasonable structural design,is benefit for
automation production and reduce cost,improve
efficiency.
Advanced design principle,low noise,low consumption,low cost,save energy.
| Standard accessories |
|---|
| Inverter |
| Hydraulic over-load protector |
| Slide adjust (60Tons and below) |
| Slide adjust device(80Tons and above) |
| Die height indicator (60Tons and below) |
| Die height indicator(60Tons and above) |
| Balance device |
| Rotary cam switch |
| Misfed detection consent |
| Power supply |
| Crank angle indicator |
| Electrical stroke counter |
| Air source receptacle |
| Against over-run safety device |
| Air ejector |
| Maintenance tool box |
| Operation manual |
| Optional Accessories |
|---|
| High performance wet clutch & brake |
| Electrical automatic lubrication system |
| Pneumatic die cushion device |
| Foot switch |
| Quick die change device (die lifter, clamp and die arm sepies ) |
| Slide knock-out device |
| Auti-vibration press mount |
| Photo-electronic safety device |
| Feeder |
| Uncoiler |
| Leveler |
| Mechanism hand |
| Die room light |
| Touch pad(preset, total counter) |
| PAC 100 counter system |
| Human-computer counter system |

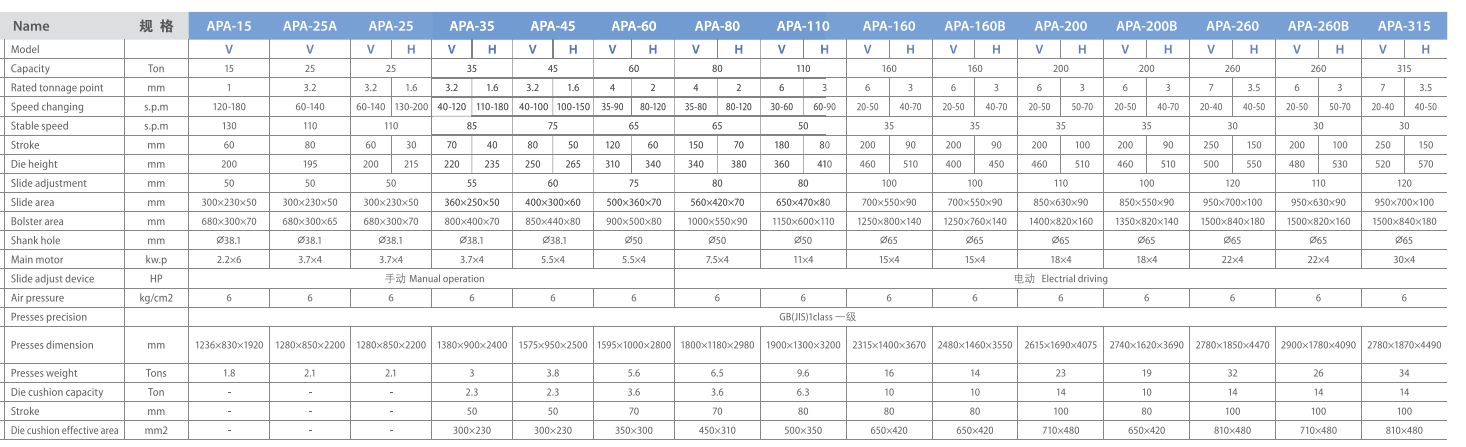

| Specification | APA-25 | APA-35 | APA-45 | APA-60 | APA-80 | APA-110 | APA-160 | APA-200 | APA-260 | APA-315 |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 1100 | 1200 | 1400 | 1420 | 1955 | 1720 | 2140 | 2440 | 2695 | 2695 |
| B | 840 | 900 | 950 | 1000 | 1170 | 1290 | 1390 | 1690 | 1850 | 1870 |
| C | 2135 | 2345 | 2423 | 2780 | 2980 | 3395 | 3070 | 4075 | 4470 | 4490 |
| D | 680 | 800 | 850 | 900 | 1000 | 1150 | 1250 | 1400 | 1500 | 1500 |
| E | 300 | 400 | 440 | 500 | 550 | 600 | 800 | 820 | 840 | 840 |
| F | 470 | 520 | 560 | 700 | 770 | 910 | 990 | 1130 | 1130 | 1130 |
| G | 250 | 285 | 340 | 400 | 420 | 470 | 550 | 630 | 700 | 700 |
| H | 800 | 790 | 800 | 795 | 830 | 830 | 910 | 1030 | 1030 | 1030 |
| I | 260 | 290 | 320 | 430 | 480 | 530 | 650 | 650 | 750 | 770 |
| J | 444 | 488 | 502 | 526 | 534 | 616 | 660 | 790 | 900 | 900 |
| K | 160 | 205 | 225 | 255 | 280 | 305 | 405 | 415 | 430 | 430 |
| L | 980 | 1040 | 1170 | 1188 | 1310 | 1420 | 1760 | 2040 | 2005 | 2005 |
| M | 700 | 800 | 840 | 890 | 980 | 1100 | 1200 | 1440 | 1560 | 1580 |
| N | 540 | 620 | 670 | 720 | 780 | 920 | 1000 | 1160 | 1300 | 1320 |
| O | 1275 | 1375 | 1575 | 1595 | 1770 | 1895 | 2315 | 2615 | 2780 | 2780 |
| P | 278 | 278 | 313 | 333 | 448 | 488 | 545 | 593 | 688 | 688 |
| Q | 447 | 560 | 585 | 610 | 620 | 685 | 725 | 805 | 875 | 885 |
| R | 935 | 1073 | 1130 | 1378 | 1506 | 1650 | 1960 | 2188 | 2460 | 2480 |
| Standard Accessories |
|---|
| Overload protector |
| motorized slide adjusting device |
| digital die height indicator(unit:0.1mm) |
| Couter Balancer |
| Rotary Cam Switch |
| Crank Angle Indicator |
| Re - circulation Lubrication Device |
| Electromagnetic Counter |
| Over Run Proiector |
| PLC Controller |
| T - type Operation Stand |
| Air Ejector |
| Air Source Receptacle |
| Independence Electtric Control Cabinet |
| Service Tools and Tools Kit |
| Optional Accessories |
|---|
| Die Cushion |
| Slide Knockout Device |
| Die Light |
| Main Motor Reversing Circuit |
| Photo Electri Safety Device |
| Safety Block With Plug |
| Preset Counter |
| Load Monitor |
| Receptacle for Misfeed Detecting Device |
| Inverter |
| Anchor Bolts、Plate & Fundation Plates |
| Safety Guard & Ladder |
| Power Receptacle |
| Quick Die Change Device |
