| DESCRIPTION |
UNIT |
1600 ton |
2100 ton |
| INJECTION UNIT |
|
|
|
| Screw diameter |
mm |
120 / 130 / 140 / 150 |
140 / 150 / 160 |
| Screw L/D ratio |
L/D |
26.1 / 24.1 / 22.4 / 20.9 |
22.4 / 20.9 / 19.6 |
| Shot Volume (Theoretical) |
cm³ |
6669 / 7827 / 9078 / 10421 |
11084 / 12723 / 14476 |
| Shot weight (PS) |
g |
6069 / 7123 / 8261 / 9483 |
10086 / 11578 / 13174 |
|
OZ |
214.1 / 251.2 / 291.4 / 334.5 |
355.8 / 408.4 / 464.7 |
| Injection pressure |
MPa |
193 / 164 / 142 / 123 |
163 / 142 / 125 |
| Injection Speed |
mm/s |
117 |
111 |
| Injection Stroke |
mm |
590 |
720 |
| Screw Speed |
rpm |
0–100 |
0–80 |
| CLAMPING UNIT |
|
|
|
| Clamping Force |
kN |
16000 |
21000 |

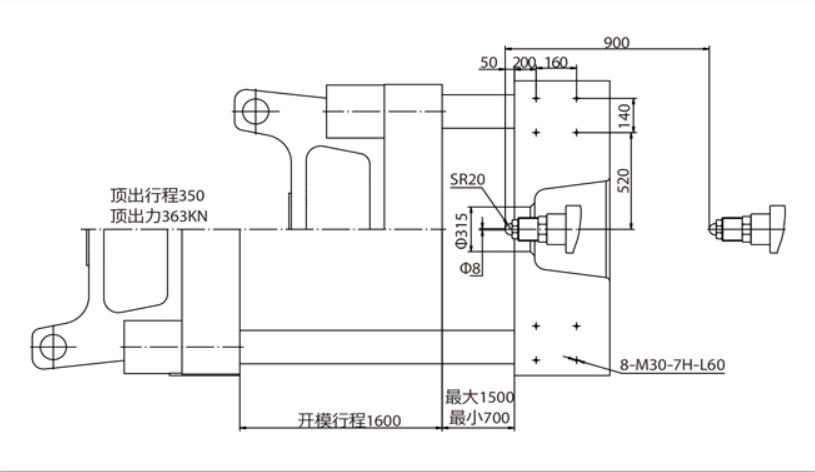

| Mold Opening Stroke |
mm |
1600 |
1800 |
| Space Between Tie Bars (H×V) |
mm |
1500 × 1415 |
1750 × 1600 |

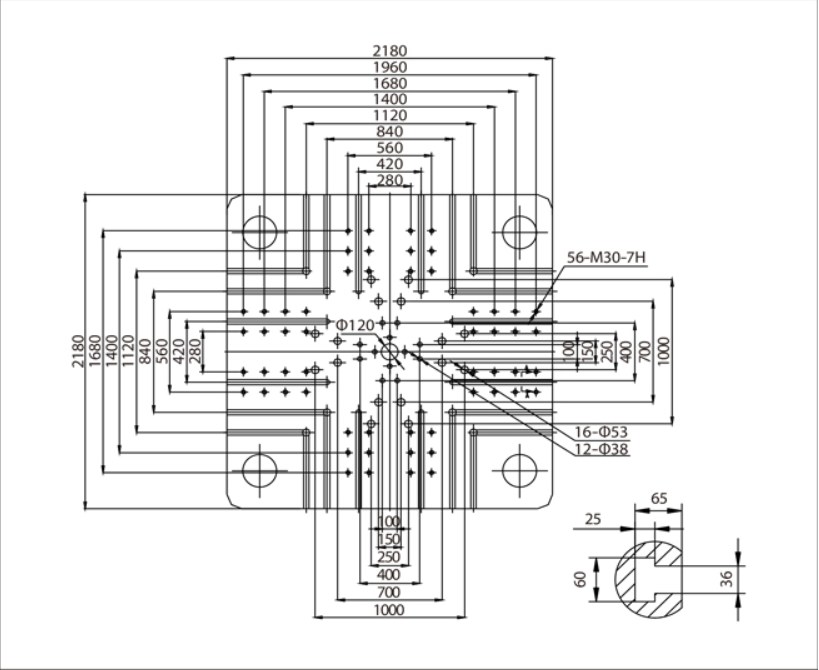

| Platen dimensions (H×V) |
mm |
2180 × 2180 |
2480 × 2380 |
| Max. Mold Height |
mm |
1500 |
1700 |
| Min. Mold Height |
mm |
700 |
780 |
| Ejector Stroke |
mm |
350 |
400 |
| Ejector Force |
kN |
363 |
492 |
| Ejector Number |
n |
29 |
29 |
| OTHERS |
|
|
|
| Max. Pump Pressure |
MPa |
16 |
16 |
| Motor Power |
kW |
60.5 + 60.5 + 60.5 |
48.2+48.2+48.2+48.2 |
| Heater Power |
kW |
101.85 |
101.85 |
| Machine Dimension (L×W×H) |
m |
14.97 × 3.23 × 3.58 |
15.6 × 3.54 × 3.62 |
| Oil Tank Capacity |
Liter |
1800 |
2200 |
| Machine Weight |
Ton |
105 |
139 |
